2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant

Model Number : 2000L

Certification : ISO

MOQ : 1Set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100 Set /Year

Delivery Time : 35 days after get your advance deposit

Packaging Details : Standard Wooden Box

Name : juice pasteurization machine

Material : Sanitary Stainless Steel 304 / 316

Application : Eggs Pasteurization

Inlet temperature : 20 -65C

Sterilization Temperature : 115-135C

Holding Time : 5Seg-30 Seg

Outlet Temperature : 20C-65C

Type : Full Automatic with PLC

Packing : Wooden box

Warranty : One year

Contact Now

2000LPH Automatic Milk Fruit Juice UHT Flash Pasteurizer Plate Sterilizer

1. Technical Parameter :

Automatic tubular UHT is developed according to the technical requirement of juice filling line. It connects UHT and 3-in-1 monoblock directly.

UHT, Pasteurizer for Juice, Flavoured Milk, hot filling drinks Pasteurizer for Juice, Flavoured Milk, hot filling drinks Working Parameters:

Material entry temperature: Under 30° C.

Sterilizing temperature and keeping time: 137± 1° C, 5~30 seconds

Material out temperature: 25~90° C (according to the need)

Equiipment Information:

Sterilizing material: Flavour milk, tea, juice

2. Technical Parameter :

Name		KQ-PUT-15	KQ-PUT-20	KQ-PUT-25	KQ-PUT-30	KQ-PUT-55	KQ-PUT-105
production capacity	t/h	2	3	4	5	10	20
heat exchanging area	m2	15	20	25	30	55	105
temperature of material inlet	°C	5	5	5	5	5	5
temperature of material outlet	°C	5	5	5	5	5	5
sterilizing temperature	°C	85-95	85-95	85-95	85-95	85-95	85-95
heat preservation period	S	15	15	15	15	15	15
ice water consumption	multiple	3	3	3	3	2	2
cooling water consumption	multiple	2	2	2	2	2	2
energy consumption	kw	10	10	12	14	16	20
outline dimensions	mm	350019001880	350019001880	450019501880	450020001880	650020001880	6500*20

4. Application :

2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant

Product Tags:

milk sterilizer machine

uht pasteurization equipment

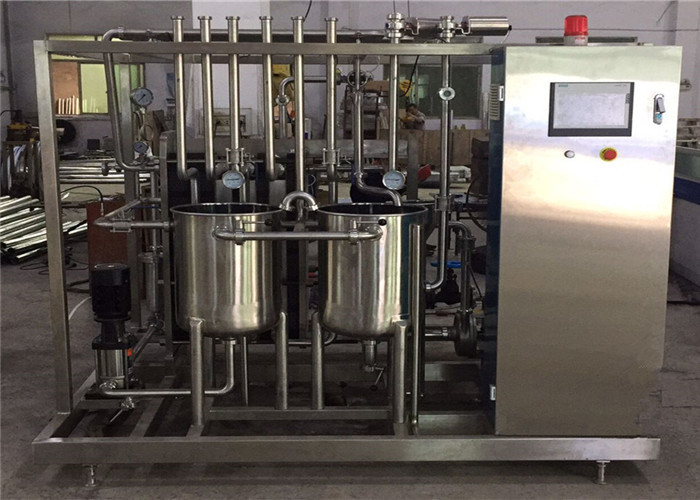

2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant Images
